CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment

Place of Origin : China

Brand Name : Zhongyuan

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Model Number : Standard and Customized

MOQ : 1

Price : As per quotation

Packaging Details : Pallet or Customized

Delivery Time : As per offer

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Technical Standard : CB531-66

Nominal Chain Diameter : 17mm to 37mm

Materials : C-Mn Steel, Stainless Steel

Surface treatment : sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

Contact Now

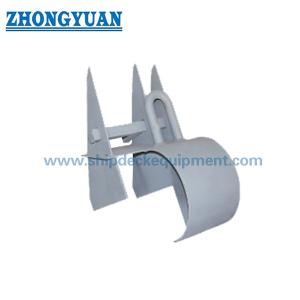

CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment

Description:

Simple type anchor releaser is one of popular anchor releasing devices. Although it is called the simple anchor releaser and it can still- hold the nominal diameter of 17mm up to 37mm anchor chains. Besides, it is easy to operate the simple anchor releaser and keep safety when ship is sailing. If you have any requirement about the products, we can do it as you request.

Main Technical Specification:

1. Technical Standard: CB531-66;

2. Nominal Chain Diameter: 17mm to 37mm

3. Applicable to Grade 2 and Grade 3 Anchor Chains;

4. Materials: C-Mn Steel, Stainless Steel,

5. Excellent Flexibility;

6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.

7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

8. Can be Customized

Main Technical Parameter:

Cale diameter

mm

 L L1 B B1 B2 B3 H1 H2 H3 H4 R t1 t2 t3 d Weight kg≈
17-19 150 35 238 54 128 140 90 100 100 118 100 6 4 5 28 8.93
22-25 196 40 270 61 146 170 110 130 110 145 125 8 4 6 30 14.38
28-31 256 45 305 70 165 200 130 160 120 180 150 10 5 6 30 25.41
34-37 324 55 360 84 198 230 150 190 130 215 175 12 6 8 36 36.88

CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment

Drawing of CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment
